Spinifex on Vultr

Prerequisites

You need:

• A Vultr account with room for the nodes you choose in step 2.
• A Vultr API key. In the Vultr portal, open your user menu, then API Access, and under your organization choose Create API Key.

Under Access Control List, choose Add IP to Allowlist and add 0.0.0.0/0 for now. The nodes call the API to manage their addresses, and their addresses do not exist until the deploy creates them. You replace 0.0.0.0/0 with the real addresses in step 4.

• OpenTofu or Terraform, version 1.5 or newer. Install OpenTofu or Terraform; the deploy script uses whichever it finds, preferring OpenTofu.
• The AWS CLI v2 and python3.
• An SSH key pair at ~/.ssh/id_ed25519.

Create one with ssh-keygen -t ed25519 if you do not have one. The deploy installs the public key on every node.

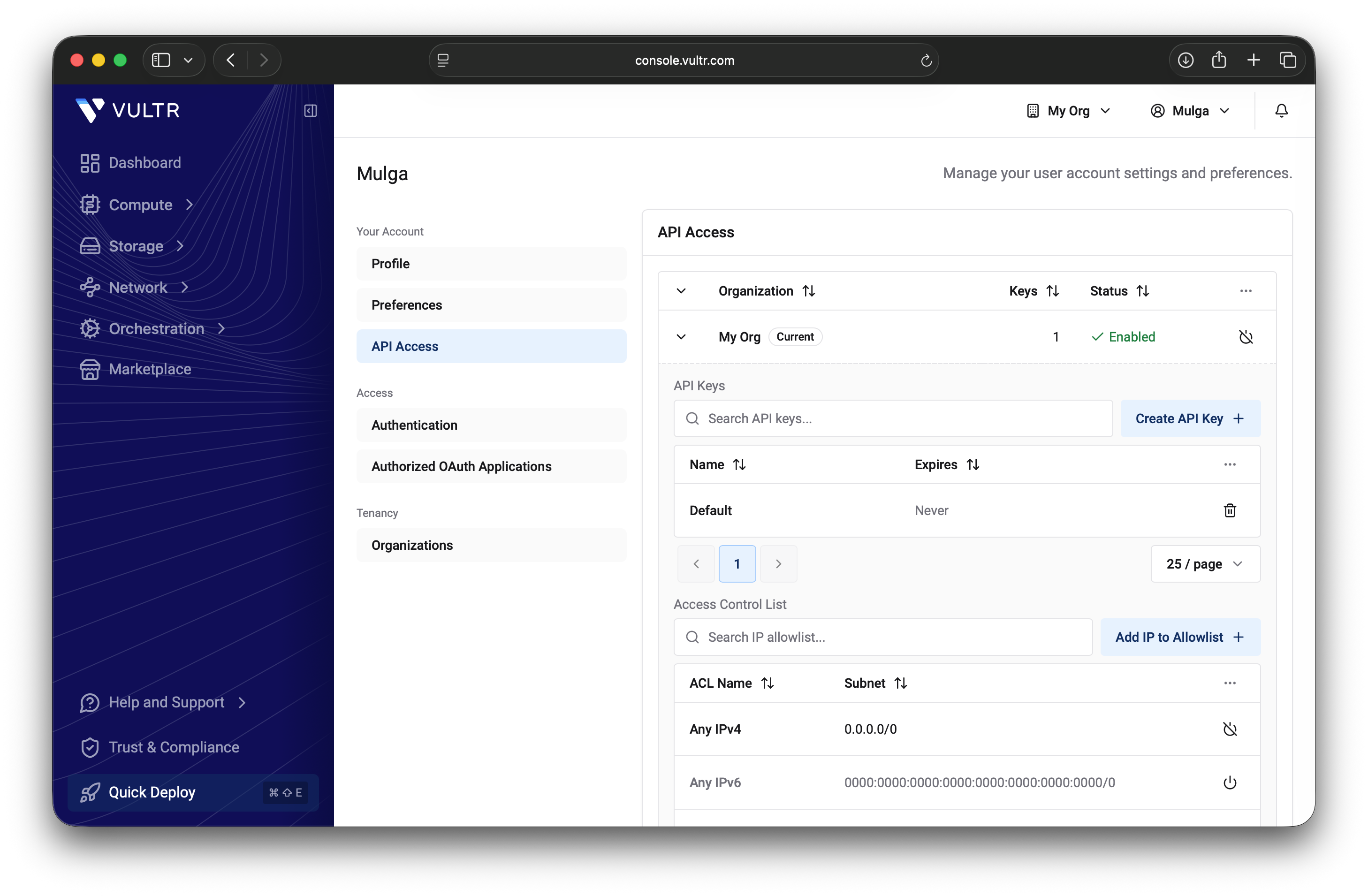

The API key page, with the key and the temporary 0.0.0.0/0 entry in its access control list:

Instructions

1. Download Spinifex

The deploy script, deploy-vultr.sh, is in the Spinifex repository:

git clone https://github.com/mulgadc/spinifex.git
cd spinifex
git switch dev
cd scripts/terraform/vultr-spx

2. Choose a deployment

For development and testing, use one vx1-g-16c-64g VM. It is the smallest size we recommend, because the EC2 instances, load balancers, EKS and ECS clusters you create all run inside it and need headroom. Spinifex keeps 2 of its 16 vCPUs for the host and its own services and offers the other 14 to what you create, one vCPU each, with no overcommit.

For production, use three VMs, or bare metal. On three nodes, an instance whose node fails is restarted on another node, and its public address follows it. vbm-8c-64gb-amd is the smallest bare-metal server we recommend for production workloads, as one server or as three.

Bare metal takes longer to deliver than a VM, and Vultr bills a bare-metal server from the moment it is created, whether it is running or stopped.

3. Deploy

deploy-vultr.sh is a helper script around Terraform or OpenTofu and the official Vultr provider, so the Vultr side of the deployment is infrastructure as code you can read, keep and change in scripts/terraform/vultr-spx/. OpenTofu or Terraform creates a private Vultr VPC and the nodes. The script then installs Spinifex on every node over SSH and forms the cluster.

Each node runs Ubuntu 24.04 LTS as its host operating system, and Spinifex runs on top of it. Vultr installs the operating system when it creates the node, so there is no host to prepare first.

Set your API key, then run the command for the deployment you chose:

export VULTR_API_KEY=<your key>

# Development and testing: one VM
./deploy-vultr.sh up --channel dev --plan vx1-g-16c-64g

# Production: three VMs
./deploy-vultr.sh up --channel dev --plan vx1-g-16c-64g --nodes 3

# Production on bare metal: one server, or three
./deploy-vultr.sh up --channel dev --plan vbm-8c-64gb-amd
./deploy-vultr.sh up --channel dev --plan vbm-8c-64gb-amd --nodes 3

One VM takes about 4 minutes and three VMs about 16 minutes. Bare metal is slower, because Vultr takes 5 to 6 minutes to deliver a server: one server took 10 minutes in our test, and three took 18½. The default Vultr region is ord (Chicago); pass --region for another, and run ./deploy-vultr.sh --help for every option.

If a step fails, fix the cause and run the same command again: it resumes from the step that failed.

When it finishes, the deploy prints:

endpoint=https://203.0.113.10:9999
profile=spinifex
ca=/home/you/.spinifex/vultr-default-ca.pem
console=https://203.0.113.10:3000/
node1=203.0.113.10
api_key_allowlist=203.0.113.10/32

A three-node deployment lists node2 and node3 as well, and all three addresses in api_key_allowlist.

4. Restrict the API key

Now that the node addresses are known, close the API key to everything else. In the Vultr portal, open your user menu, then API Access, and under Access Control List:

1. Choose Add IP to Allowlist for each address from the api_key_allowlist line.
2. Add your own machine's public address, so that ./deploy-vultr.sh can still remove the deployment later.
3. Remove the 0.0.0.0/0 entry, and the IPv6 ::/0 entry if your list has one.

./deploy-vultr.sh status prints the node addresses again whenever you need them.

5. Check it worked

./deploy-vultr.sh status

This lists each node and its address, then every VM or bare-metal server, VPC, volume and reserved IP the deployment holds in your Vultr account, then the completed deploy steps.

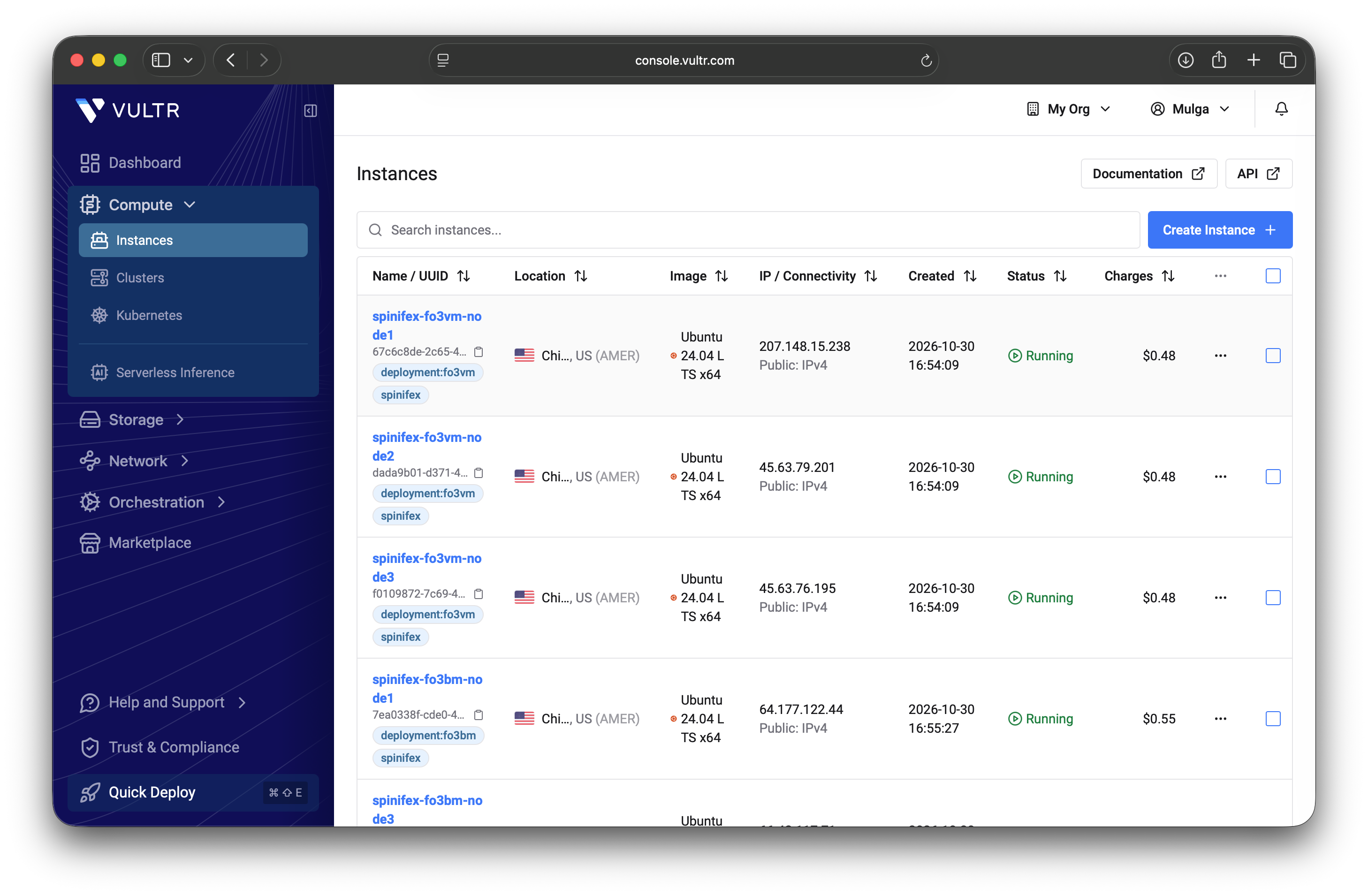

In the Vultr portal, the nodes are under Compute → Instances, bare-metal servers included. Each is named spinifex-<deployment>-nodeN and tagged spinifex and deployment:<deployment>, which is deployment:default unless you passed --name. These are the servers that run Spinifex, and the AWS workloads and services you create on it run inside them.

To log in to a node:

./deploy-vultr.sh ssh            # node1
./deploy-vultr.sh ssh node2      # another node of a three-node deployment

For a three-node deployment, check that every node has joined:

./deploy-vultr.sh ssh 'spx get nodes'

Expect three nodes with Ready status:

NAME  │ STATUS │ ROLES         │ IP        │ REGION    │ AZ         │ UPTIME │ VMs │ SERVICES
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────
node1 │ Ready  │ nats:leader   │ 10.10.8.5 │ us-east-1 │ us-east-1a │ 12m    │ 0   │ nats,predastore,viperblock,daemon,awsgw,vpcd,ui
node2 │ Ready  │ nats:follower │ 10.10.8.4 │ us-east-1 │ us-east-1a │ 11m    │ 0   │ nats,predastore,viperblock,daemon,awsgw,vpcd,ui
node3 │ Ready  │ nats:follower │ 10.10.8.3 │ us-east-1 │ us-east-1a │ 11m    │ 0   │ nats,predastore,viperblock,daemon,awsgw,vpcd,ui

6. Obtain AWS credentials

The deploy generated an AWS access key and secret on node 1. Display them with:

./deploy-vultr.sh credentials

The output has this shape:

[spinifex]
aws_access_key_id = <access-key>
aws_secret_access_key = <secret-key>

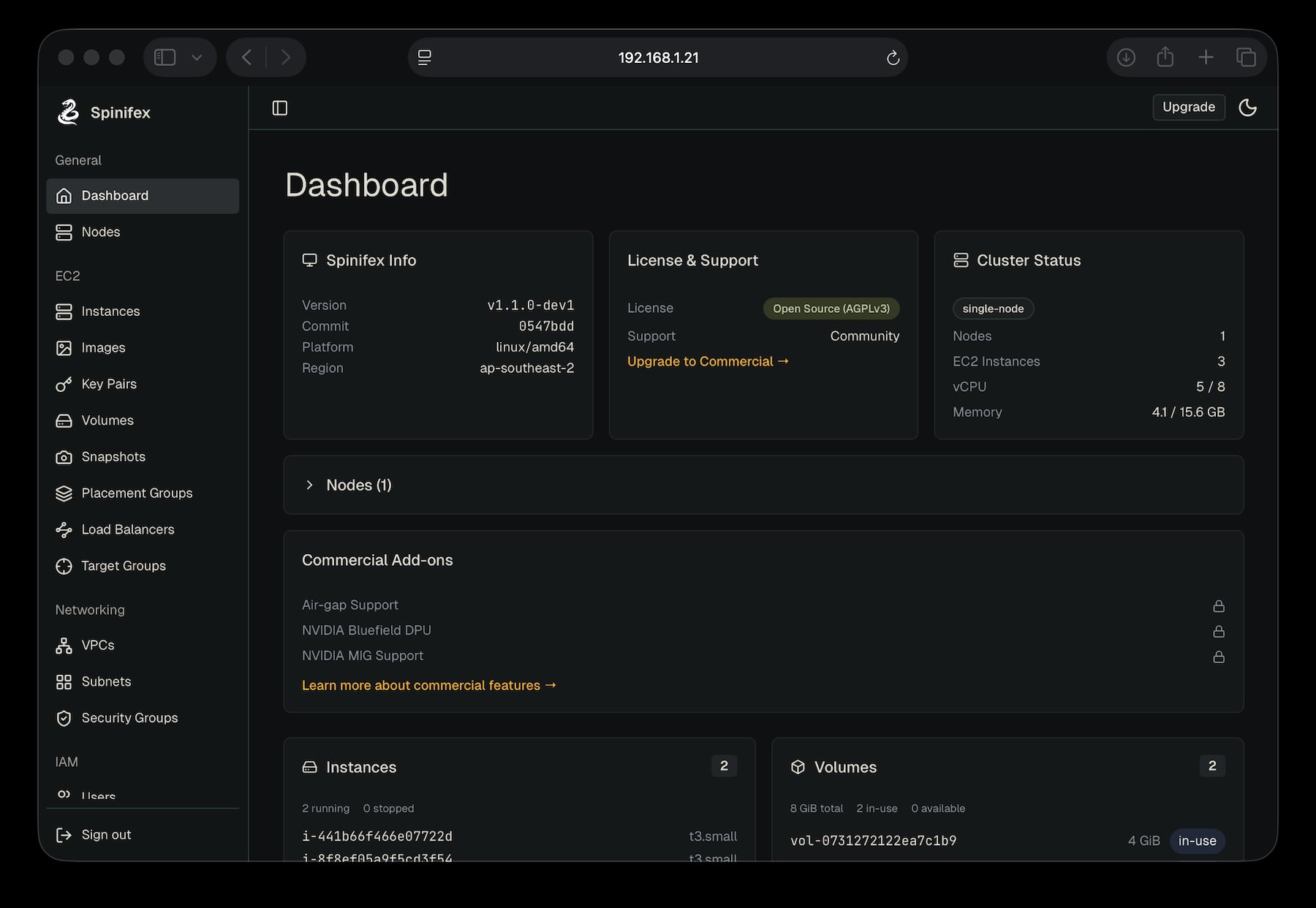

Use these to sign in to the web console at the console address the deploy printed, https://<node1 address>:3000/.

The deploy has also written them to an AWS profile named spinifex on your machine, with the endpoint and the cluster's certificate already set, so the AWS CLI works straight away:

export AWS_PROFILE=spinifex
aws ec2 describe-instance-types

The same profile is set up on node 1, if you prefer to work from there:

./deploy-vultr.sh ssh 'export AWS_PROFILE=spinifex; aws ec2 describe-instance-types'

If this returns a list of available instance types, your installation is working.

Congratulations, Spinifex is installed.

7. Set up your cluster

Spinifex is running, but it holds nothing yet: no machine images, no networks, no instances.

Continue to Setting Up Your Cluster to import an AMI, create an SSH key pair, create a VPC with a public subnet, and launch your first instance. An instance you launch into a public subnet gets a Vultr reserved IP, which you can see in the Vultr portal under Network → Reserved IPs.

8. Test resiliency

A three-node deployment is for high availability: it protects your workloads against any one machine going down. The three nodes form one cluster, a lightweight AWS region on Vultr, and the cluster and everything on it keep running when a node fails. Spinifex restarts the failed node's instances on the surviving nodes, and moves each instance's Vultr reserved IP with it, so its public address keeps working. To watch it happen, run a load-balanced website across the three nodes, then power one of them off.

Launch a website on every node

Import the Ubuntu image the web servers run on:

./deploy-vultr.sh ssh 'spx admin images import --name ubuntu-26.04-x86_64'

The Nginx Web Server (Load Balanced) workbook launches web servers behind an Application Load Balancer. With these two variables it launches three, and a spread placement group puts each one on a different node:

cd docs/terraform-workbooks/nginx-alb
export AWS_PROFILE=spinifex
tofu init
tofu apply -var region=us-east-1 \
  -var spinifex_endpoint="$(aws configure get endpoint_url)" \
  -var server_count=3 -var placement_strategy=spread

Use terraform in place of tofu if that is what you installed. Check that each web server is on its own node:

../../../scripts/terraform/vultr-spx/deploy-vultr.sh ssh 'spx get vms'

The NODE column shows node1, node2 and node3 once each, and the load balancer is the sys.micro instance.

Keep requests running

Get the load balancer's address, and request the page once a second in a second terminal:

ALB_IP=$(aws elbv2 describe-load-balancers --names nginx-alb \
  --query 'LoadBalancers[0].AvailabilityZones[].LoadBalancerAddresses[].IpAddress' --output text)
while :; do
  printf '%s %s\n' "$(date +%T)" "$(curl -s -m2 "http://$ALB_IP/" | grep -o 'Server [0-9]' || echo FAILED)"
  sleep 1
done

Each line names the web server that answered.

Power off a node

From the vultr-spx directory, power off a node that runs a web server but not the load balancer:

./deploy-vultr.sh stop node3

This is a hard power-off through the Vultr API, as a hardware failure would be, so the node hands nothing over first. Watch the requests and spx get vms:

1. For up to about a minute, a few requests fail while the load balancer's health checks find that one web server is gone.
2. After that, the other two web servers answer every request.
3. About three minutes after the power-off, the lost web server is running on one of the surviving nodes.
4. About four minutes after the power-off, its own public address answers again, and the load balancer sends it requests once its health checks pass.

Power the node back on:

./deploy-vultr.sh start node3

It rejoined the cluster about a minute after a VM started, and about five minutes after a bare-metal server started. Wait until spx get nodes shows it Ready before you power off another node. The instances that moved stay where they are.

What we measured

On three vx1-g-16c-64g VMs and on three vbm-8c-64gb-amd bare-metal servers in Chicago, with the workbook above:

Each case was measured once. The requests column counts one-second probes, so a run with more timed-out requests sends fewer of them. The load balancer recovers first, because it moves to a surviving node like any other instance. While node1 is off, the AWS endpoint in your spinifex profile does not answer, because it is node1's address. Call another node meanwhile by adding --endpoint-url https://<node2-address>:9999 to an aws command.

When you are done, remove the workbook with tofu destroy and the same -var options before removing the deployment.

Removing the deployment

Remove anything you built on the cluster first, then:

./deploy-vultr.sh destroy

It shows what it will delete and asks you to type the deployment name, default, to confirm. It deletes the nodes and the VPC, plus anything else the deployment left in your Vultr account that keeps billing: VM boot volumes, and any reserved IP Spinifex created. When it finishes, nothing of the deployment is left, and if anything is, it lists it and fails.

After removing the deployment, remove the node addresses from the API key's Access Control list, since Vultr may give them to someone else.

Limits

• One or three nodes. Other cluster sizes are not supported.
• 16 vCPU per node is the recommended minimum. On a 16-vCPU node, Spinifex keeps 2 vCPU for the OS and its own services, and the other 14 are available for your EC2 instances and AWS services.
• A deleted reserved IP keeps its quota slot for 24 hours, by Vultr's documentation, so creating and deleting many addresses in a day can reach the account's limit.
• A three-node deployment survives one failed node at a time. The cluster needs a majority of its nodes, two of three, online to keep running.
